We are specialist in Globe valves for Straight pattern, Y Pattern, ASME 150, 300, 600 Cryogenic Globe Valves in WCB / CI / SS body and other wetted parts & Flange rating 150#, 300#, 600#, 800#, 1500#, 2500#

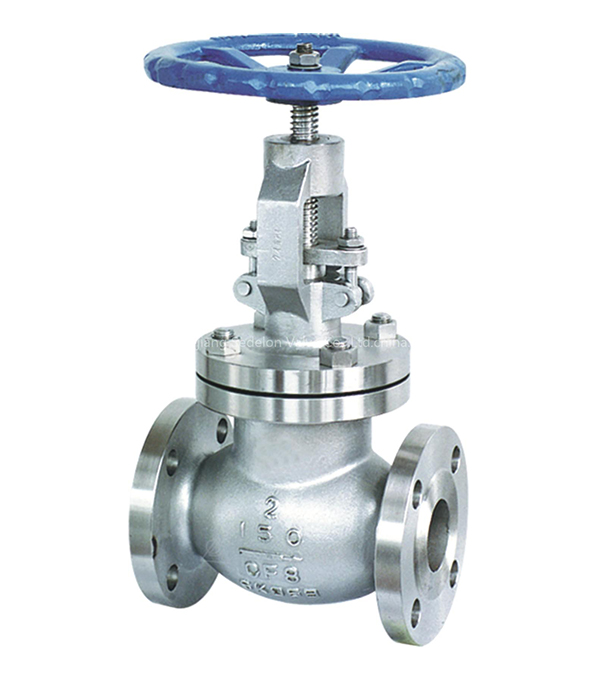

Globe valve is used in industry to regulate fluid flow in both on/off and throttling service. Globe valves offer precise throttling and control and have high-pressure limits. These valves are designed for least possible obstruction to free flow. Globe Valves are meticulously designed to ensure 100% smooth flow area to reduce pressure drop across the valve. Globe valves are linear motion valves with rounded bodies
Specially designed Seat and Packing material are provided for superheated steam and high temperature oils and fluids to ensure trouble free service and longer life. A properly machined and lapped backseat facilitates replacement of Gland packing when Valve is in full stream.
Globe Valves are manufactured in almost all material like Cast Carbon Steel, Cast Alloy Steel, Stainless Steel of all Grades and Super Alloy Steel, Hastelloy etc. tailor-made/custom-made in larger sizes, higher pressure ratings, special material of construction are also entertained.
These valves are designed for least possible obstruction to free flow by providing curvature turns in the body, thereby minimizing stresses & turbulences also. Discs are plug type and held together with stem by disc nut & allow the perfect seating arrangement on the seat. Carbon steel & cast Iron valves have renewable seats while stainless and other higher grade materials have integral seats. All the valves have back seat arrangement as an additional sealing under full working pressure which facilitates replacement of packing with the valve under fully open condition
Technical Specifications:
- Size Range: 15NB – 600NB
- Range: ½” to 24”
- Trims : CS, stellited, 316, 304, Monel, Ali bronze, duplex
- Pressure Rating : ANSI - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
- Standard: Generally conforming to BS 5352 End Connection
- End Connections: : Screwed Ends 800# to BSP / BSPT/ NPT (F) Socket Weld Ends to ANSI B 16.11 Inspection
- Type: OS & Y, Bolted/ Pressure Seal bonnet
- Disc: Swivel - Flat/ Taper/ Control/ Parabolic
- Seat: Integral/ Renewable/ Seal welded
- Material: SS 316/ SS 316 L/ CI / CS or any special material
- Operation: Hand wheel/ Manual gear/ Electric motor Actuator - Smooth, Easy, Low-Torque, Long life
- Quality: Highest standard in Visual, Materials, Dimensional Accuracy, Operation, Leak-tightness
- Testing: Each valve is 100% tested to ensure leak-tightness at Shell, Seat and Gland
- Application Industries: Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers
