YASH” make valve manifolds are designed for connecting system impulse line & transmitters. These manifolds consist of two valve configuration which allows for easy isolation, calibration, block and bleed for gauges, pressure switches and static pressure transmitting instruments.
Manifolds offer a Safe & Economical method of installation, to control & measure pressure of liquids & gaseous media. They are functionally installed to Control, Isolate, Calibrate, Measure, and Equalize Drain or differentiate the pressure of liquid & gasses. These manifolds are rugged in construction to withstand high pressures and temperatures. These valve manifolds combine the functions of a tee, calibration valve, isolation valve and all tubing and fittings into a single compact unit thus reducing number of fittings and space required for installation.
We expertise in making a wide variety of manifold valves as per the international quality standards. Our range of manifold valves includes 2 ways, 3 way, 5 way manifold valves. Made with stainless steel, carbon steel and duplex stainless steel materials, manifold valves are easy to install and maintain. We offer manifold valves in various dimensions and specifications. These valves find their application in various industries like chemical, petrochemical, oil etc., and can be customized as per the need of the bulk buyers.

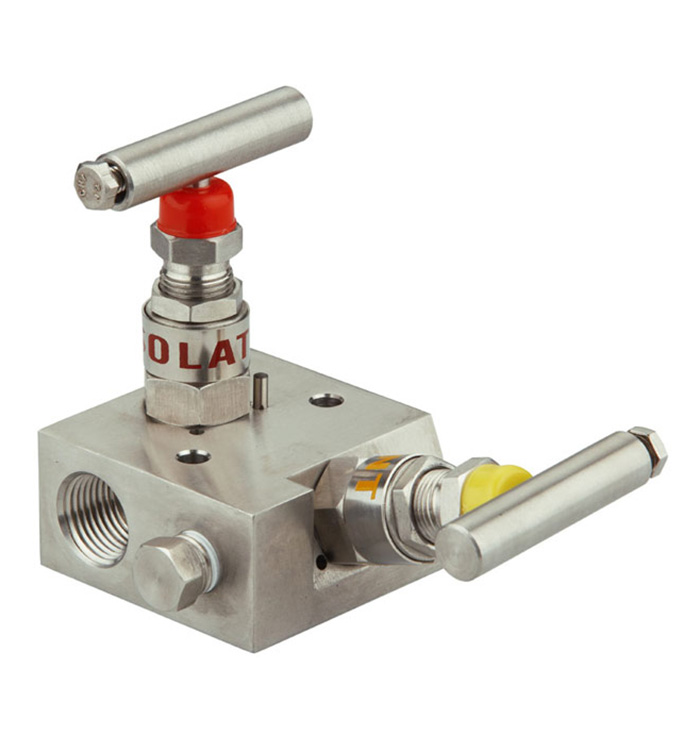

2 – Way Manifold Valves
2 valve manifold is for easy block or isolate and use for calibration systems
2 valve manifolds are designed for direct mounting. Having simple two valves configuration which allows for easy block or isolate, bleed or vent valve calibration of a static pressure transmitter or gauge supplied with premium quality of raw materials and as per the internationally specified standards like BIS, ASTM etc. Designed for static pressure, liquid level applications and remote or separate mounting, 2 valve manifolds are available with NPT, BSPT, socket weld end connections.
Screwed bonnet design. Ground and thread rolled spindle, packing below thread.
Material of Construction: SS316, SS304, CS, Hastelloy. Monel etc

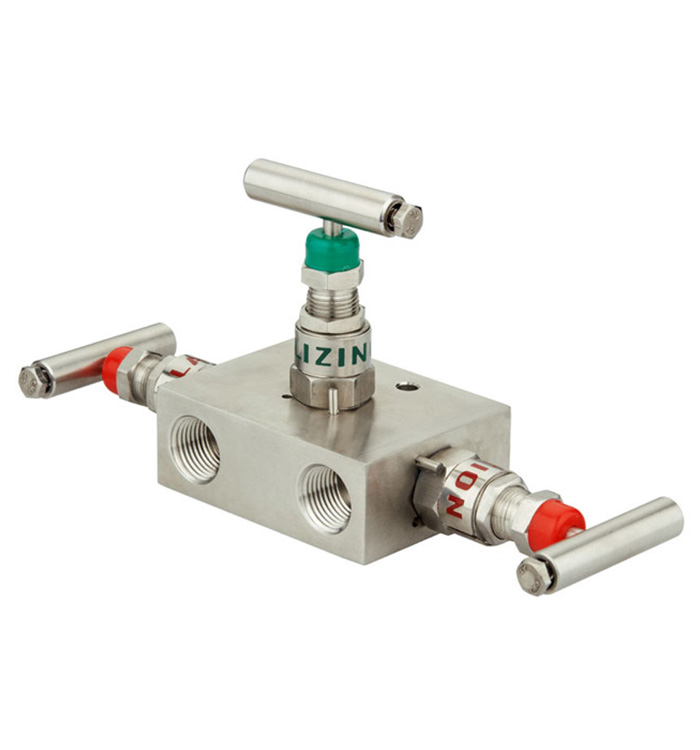

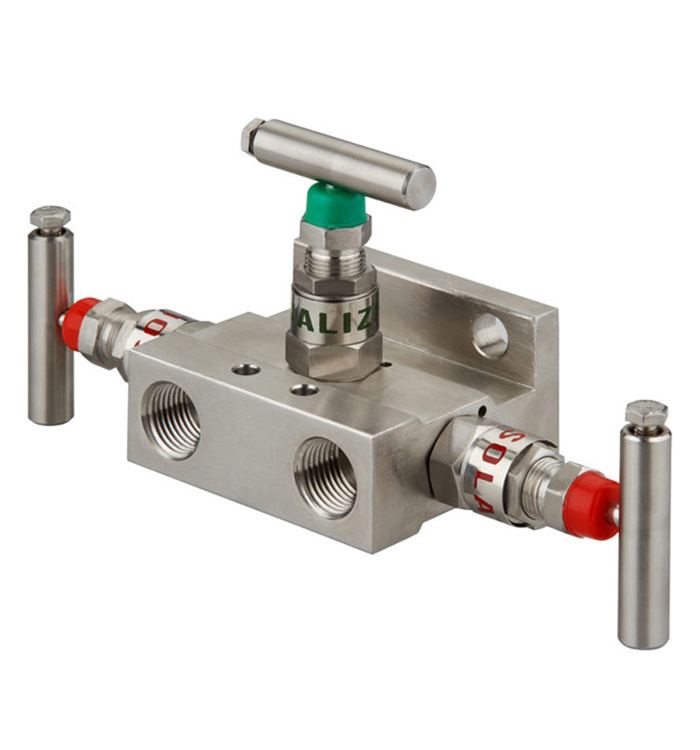

3 – Way Manifold Valves
3 valve manifolds is for 2 isolate & I equalizer valve for equalizing the high pressure & low pressure lines.
3 Valve Manifold are Designed for remote or separate mounting connecting impulse lines or transmitters or flow records to impulse line tubing & are supplied in compliance with the international quality standards like BIS, BS and more. These precision engineered manifold valves are made by using SS-316, SS-304, carbon steel, haste alloy, monel, inconel etc. These valves find their application in various industries like chemical, petro-chemical, oil and many more. We fulfill bulk orders within specified time period and bulk orders on short notice are welcomed by us.
Screwed bonnet design. Ground and thread rolled spindle, packing below thread.
Material of Construction: SS316, SS304, CS, Hastelloy. Monel etc

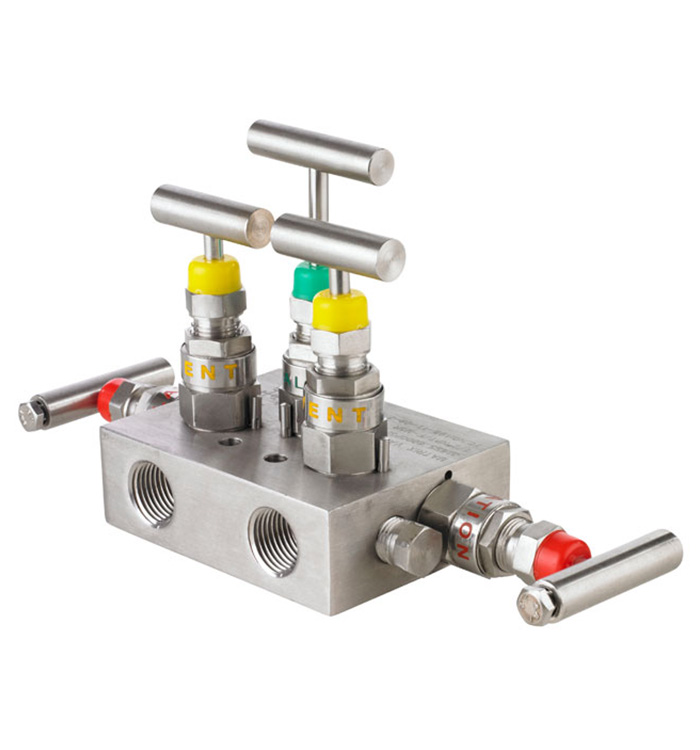

5 – Way Manifold Valves
5 valve manifolds consists of 2 isolate, 2 drain & I equalizer valves.
5 valve manifolds are designed for remote or separate mounting. Connecting from process side 1/2" NPT(F) and Instrument side 1/2" NPT(F) Connecting system impulse lines and transmitters, having simple five valves configuration which allows for easy two block or Isolate, two, one Bleed or Vent valve calibration of a static pressure transmitter or gauge.
FEATURES:
- Screwed bonnet design.
- Bonnet-back seated blow out proof. - Spindle - Ground and thread rolled.
- Spindle tip-Non rotating tip shut off type - soft seated.
- Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life
- Dust cap protects stem threads from externals contamination.
- Leak tight seal with low operating torque.
- One piece forged body without weld.
- Stem threads cold rolled to achieve maximum strength & high accuracy.
- Packing below the stem threads, prevents stem lubrication washout & isolate threads from system fluids.
- The stem is anti blow out a major safety feature.
- S.S. Lock pin adjacent to the hexagon bonnet prevents any unscrewing of the head unit.
- Each Valve is 100% tested at required pressure to ensure leak tightness at Seat, Shell & Gland.

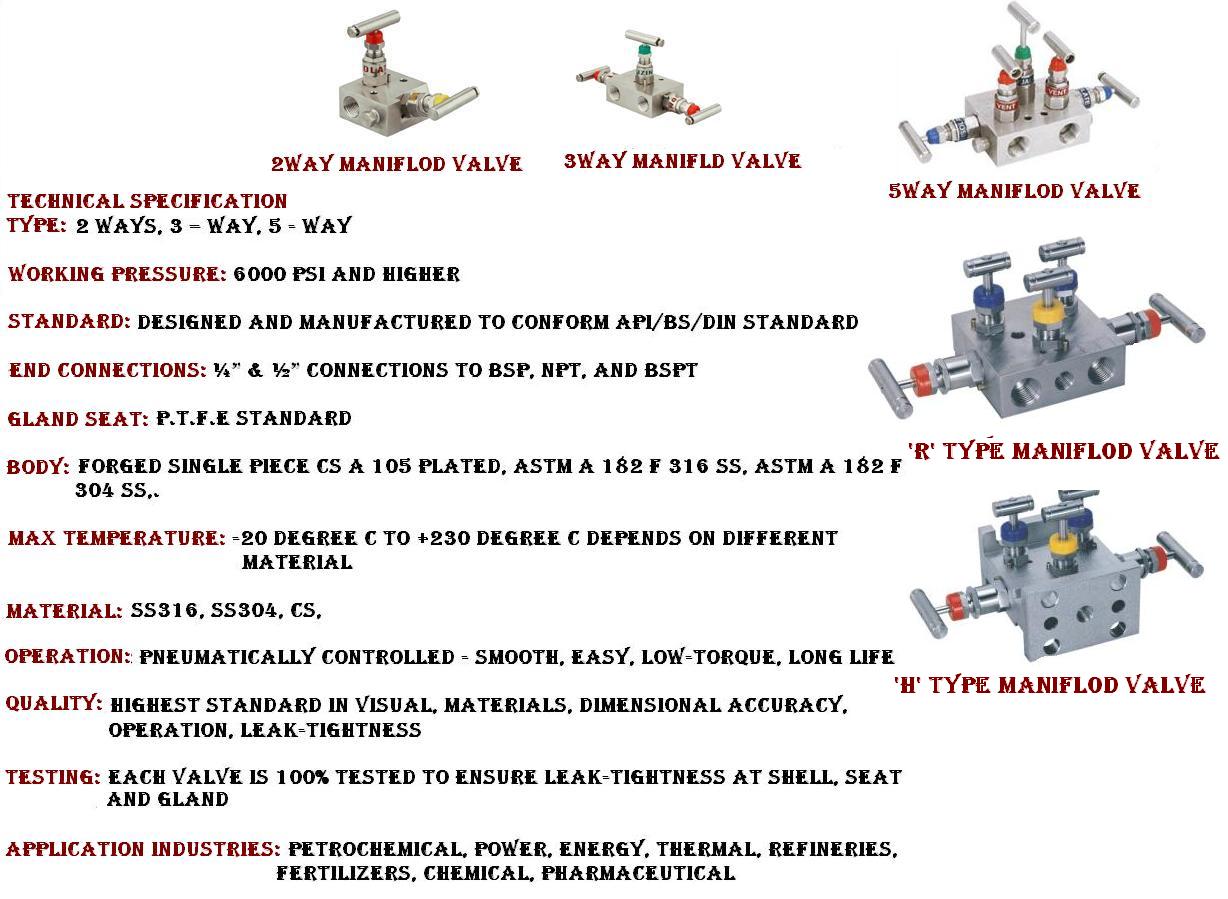

Technical Specifications:
- Types 2 way, 3 – way, 5 - way
- Working Pressure: 6000 psi and higher
- Standard: Designed and manufactured to conform API/BS/DIN STANDARD
- End Connections: ¼” & ½” connections to BSP, NPT, BSPT
- Gland Seat: P.T.F.E Standard
- Body: Forged Single Piece CS A 105 Plated, ASTM A 182 F 316 SS, ASTM A 182 F 304 SS, Monel & Hastelloy.
- Max Temperature: --20 degree C to +230 degree C depends on different material.
- Material: SS316, SS304, CS, Hastelloy. Monel etc
- Operation: Pneumatically controlled - Smooth, Easy, Low-Torque, Long life
- Quality: Highest standard in Visual, Materials, Dimensional Accuracy, Operation, Leak-tightness
- Testing: Each valve is 100% tested to ensure leak-tightness at Shell, Seat and Gland
- Application Industries: Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers, Chemical, Pharmaceutical
