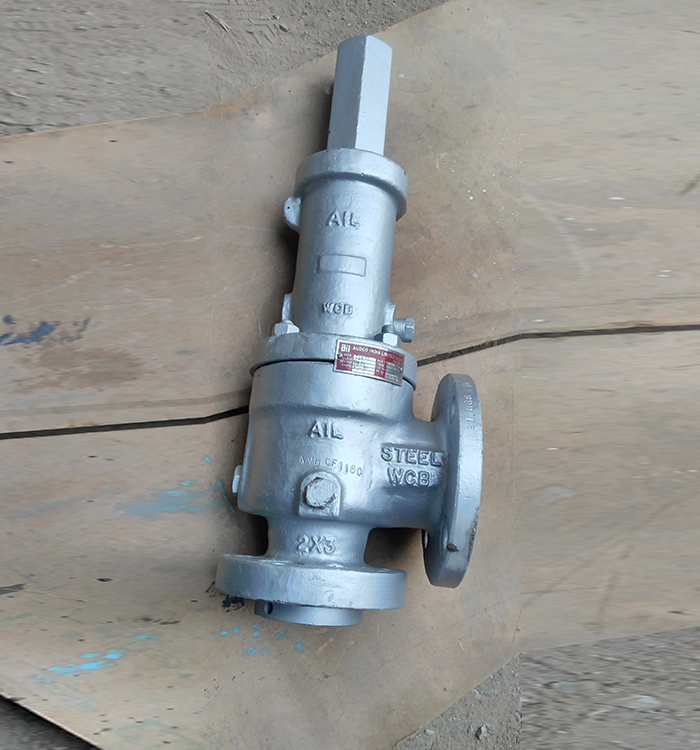

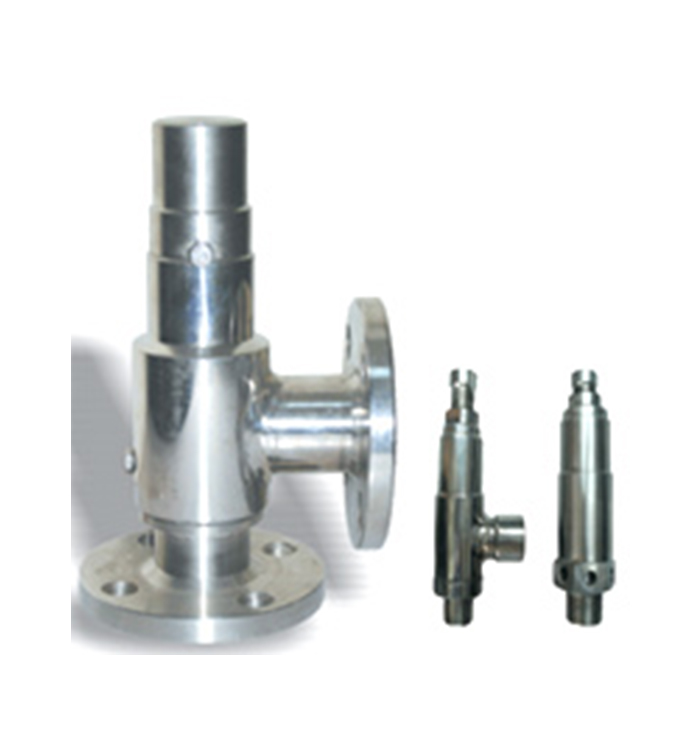

“YASH” make Safety valve provides protection from over-pressure in steam, gas, air and liquid lines. The valve "lets off steam" when safe pressures are exceeded, then closed again when pressure drops to a preset level
These can also be defined as Pressure relief valve, which are made by appropriate metal for specific parts. We take utmost care of manufacturing procedure to ensure safety measures. The main function of a safety valve is to prevent an undue rise in pressure in the vessel, to which it is fitted. Materials used in making are of higher quality such as G.M. confirming to IS 318 Gr.2 & Brass confirming to IS 319.
Low pressure system can be protected from overpressure by spring – operated valves. Weight – loaded valves or pilot-operated valves
Technical Specifications:
- End Connections : Screwed NPT / BSP / BSPT, Ends Flanged to ANSI B16.5 Table D / E F other Material & Specifications are Welcome
- Body & Bonnet: One piece, SS 316/ SS 316 L/SS 304/ CS or any special material
- Usage: For all kinds of medium/low pressure applications.
- OD Size : ½” to 4” (15 mm to 100 mm)
- Working Pressure: Suitable upto 450 PSI
- Maximum Temperature: - 65° to 450° F. (-54° to 232° C.)
- Material : PSS 316/ SS 316 L/SS 304/ CS or any special material
- Quality : Highest standard in Visual, Materials, Dimensional Accuracy, Operation, Leak-tightness, Finish and Workmanship
- Operation: Smooth, Easy, Low-Torque, Long life
- Testing: Each valve is 100% tested on Nitrogen medium to ensure leak-tightness at Shell, Seat
- Application Industries: Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers
