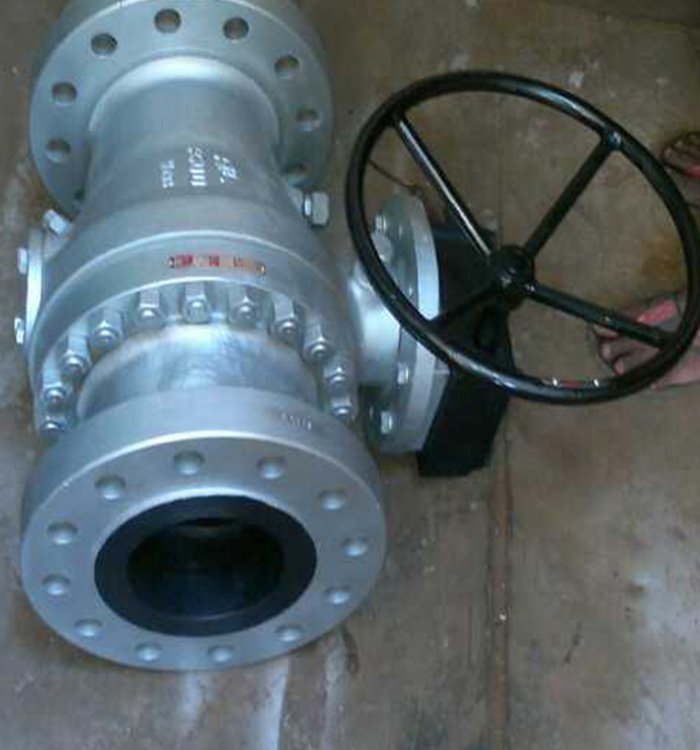

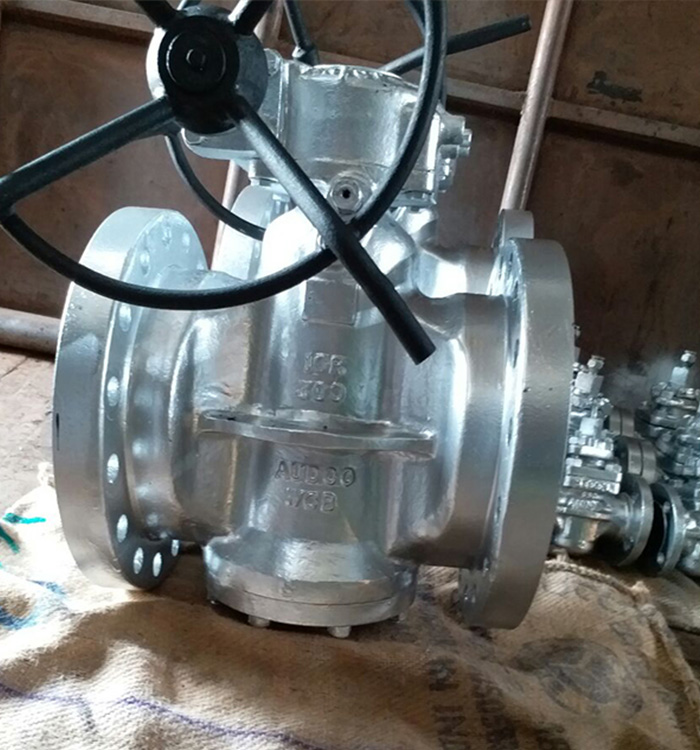

We are specialist in AUDCO valves for Super H series, Lubricated Plug Valves, Taper Plug Valve in Regular / Short Pattern in WCB / CI / SS body and other wetted parts & Flange rating 150#, 300#.
Plug valve is used primarily for on--off service and some throttling services. It controls flow by means of a cylindrical or tapered plug with a hole in the center that lines up with the flow path of the valve to permit flow. A quarter turn in either direction blocks the flow path.
Plug Valve is lined non corrosive polymer and can resist any type of chemicals at various temperatures. Valves are virtually unaffected by changes in processing temperature or chemical concentration.
The Plug & Body seating surfaces, which are grinded and matched, are not exposed to the line fluid.
Plug Valves are supplied with sealant which is suitable for most services other than Acid Solutions and Petroleum Products
Technical Specifications:
- Size Range: 15NB to 200NB
- Range: 15mm to 200mm
- Pressure Rating : ANSI - 150#, 300#
- Standard: Designed and manufactured to conform API/BS/DIN STANDARD
- Design: Regular / Short / Venturri pattern
- End Connections: Screwed, Flanged, Butt welded ends to BSP / BSPT/ NPT (F) Socket Weld Ends to ANSI
- Temperature Range: 15 Deg C to 325 Deg. C
- Material: WCB A216/ A351/ CF3M / CI or any special material
- Operation: Hand operated / Gear operated / With Actuator - Smooth, Easy, Low-Torque, Long life
- Quality: Highest standard in Visual, Materials, Dimensional Accuracy, Operation, Leak-tightness
- Testing: Each valve is 100% tested to ensure leak-tightness at Shell, Seat and Gland
- Application Industries: Petrochemical, Power, Energy, Thermal, Refineries, Fertilizers, Chemical, Pharmaceutical, Water, Steam industries
