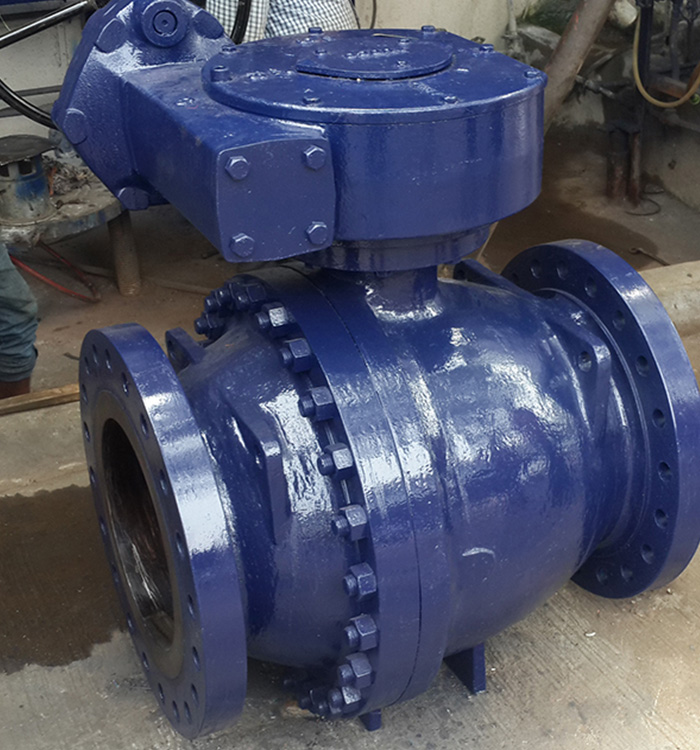

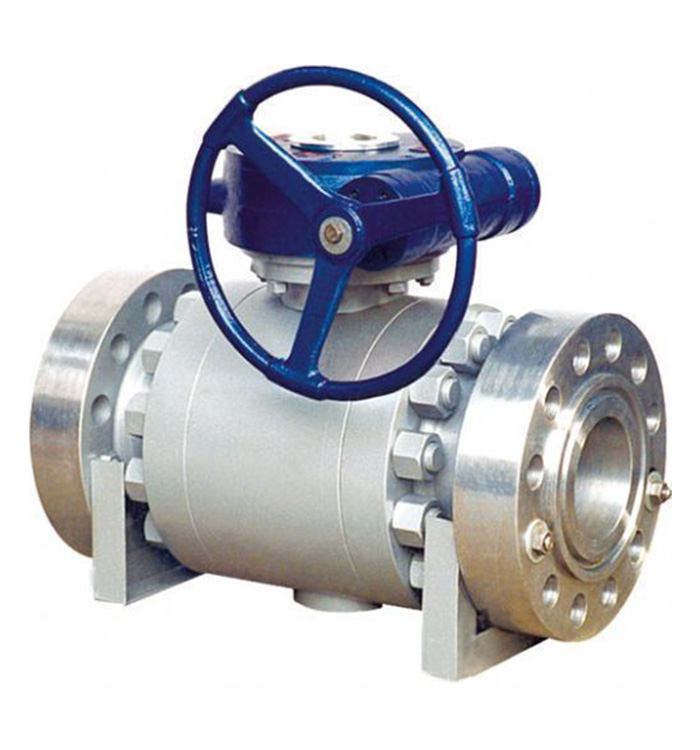

FORGED BODY TRUNNION MOUNTED BALL VALVES
We offer Trunnion ball valve from 2” to 40”. Includes ANSI 150# TO ANSI 2500# in carbon steel body. These Trunnion mounted ball valve are designed where the requirement is a lower operating torque. It’s a solution to the problem of excessive torque required by a floating type valve in high-pressure service. There is a short shaft, a kind of extension which is known TRUNNION set in the body.
Trunnion ball valve reduces the size of the actuator and overall costs of the valve. This cost difference becomes an important factor when the pressure class and valve size increases.
- Cryogenic Design
- 2-3 Piece Body
- Full and Reduced Bore
- Trunnion Mounted
- Double Block and Bleed
- Anti-Blow Out Stem
- Anti-Static Device
- Firesafe to API-607/6FA
- Spring Loaded Seats
- Sealant Injection upon request
Technical Specifications:
- Size Range: 50NB – 1000NB
- Range: 2” to 40”
- Pressure Rating : ANSI - 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
- Design API Standards: 6D & 6A, API 6D SS, ASME B16.34, API 6D, API 608, MESC SPE 77
- Face-to-Face: : API 6A ---- Fire Safe: API 607/BS 6755
- End Connections: Flanged API 6A, Screwed Ends to BSP / BSPT/ NPT (F) Socket Weld Ends
- Construction : Single / Two / Three Piece Design / Side Entry / Trunnion / Block & Bleed / Soft and Metal Seated
- Body Type: 3 pcs/ 2 pcs/ 1 pcs, Flanged body
- Operation: Manual, Gear Operated, Electro Pneumatic, Electric Actuated
- Wedge / Disc: Mounted
- Seat: PTFE/ Carbon or Glass Filled Teflon/ Graphite
- Ball : Floating, Full/Reduced Bore
- Material: Carbon Steels, Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, SS 316/ SS 316 L/SS 304/ Cast Iron / Cast Steel / Forged Steel
- Testing: Each valve is 100% tested to ensure leak-tightness at Shell, Seat and Gland
- Material: : Hydraulic oil, Water, Steam, Gas, Chemicals, Petrochemical, Power, Energy, Thermal, Refineries
